Make Complex Products Easy to Understand: Infographics, Exploded Views and Visual Proof
Technical product information is usually created for completeness. Manuals, specification sheets, engineering drawings and supplier files can contain everything the customer needs, but they are not designed for a three-second scan on a product page.
The role of technical visual communication is to translate that information into a small number of clear decisions. Can it fit? What does it connect to? How large is it? What is inside? What happens when I use it? What is included? Which model is compatible? A strong infographic answers one of these questions with visual proof and only enough copy to remove ambiguity.
This is different from simply placing specifications around a product image. The designer has to decide what information should become a diagram, what should remain as text, what needs a detail crop, and what should be shown as a sequence. The result should feel faster to understand than the source material while remaining just as factual.
What should be shown: A product communication board combining dimension, exploded and how-it-works examples.
Purpose: Show how technical information becomes customer-facing visual evidence.
Suggested composition: Three cards with one visual question per card.
Short caption: Reduce uncertainty before adding decoration.
Translate Specifications Into Customer Decisions
Before designing a technical image, identify the decision it should support. A 120 mm width matters only if the customer is trying to determine whether the product fits on a shelf, inside a bag or against another component. A USB-C connector matters because it determines interface compatibility. An IP rating matters because it changes where the product can be used.
This framing prevents specification overload. Instead of showing ten facts because they are available, the team can group related facts around one question. A size visual may show width, height and depth together. A compatibility frame may show model, connector and mounting location. A materials frame may show two or three construction layers that explain comfort, strength or protection.
The content becomes easier to scan because every image has a job.
Dimension and Scale Graphics
Dimension images should make orientation obvious. Width, height and depth labels need to sit close to the part they measure without covering important details. One unit system should be used consistently for each market, and conversions should be verified rather than estimated.
Scale references can help when raw dimensions are difficult to imagine. A product next to a hand, phone, desk or suitcase can communicate size quickly, but only when the comparison is visually and factually accurate. Decorative scale objects that are not proportionally controlled can create more confusion than the dimension line itself.
Exploded Views and Cutaways Reveal Hidden Value
Many product benefits are hidden inside the housing. Foam layers, seals, filters, internal supports, heating elements, cooling channels, gears and electronics may be essential to the product story even though the customer cannot see them from the outside.

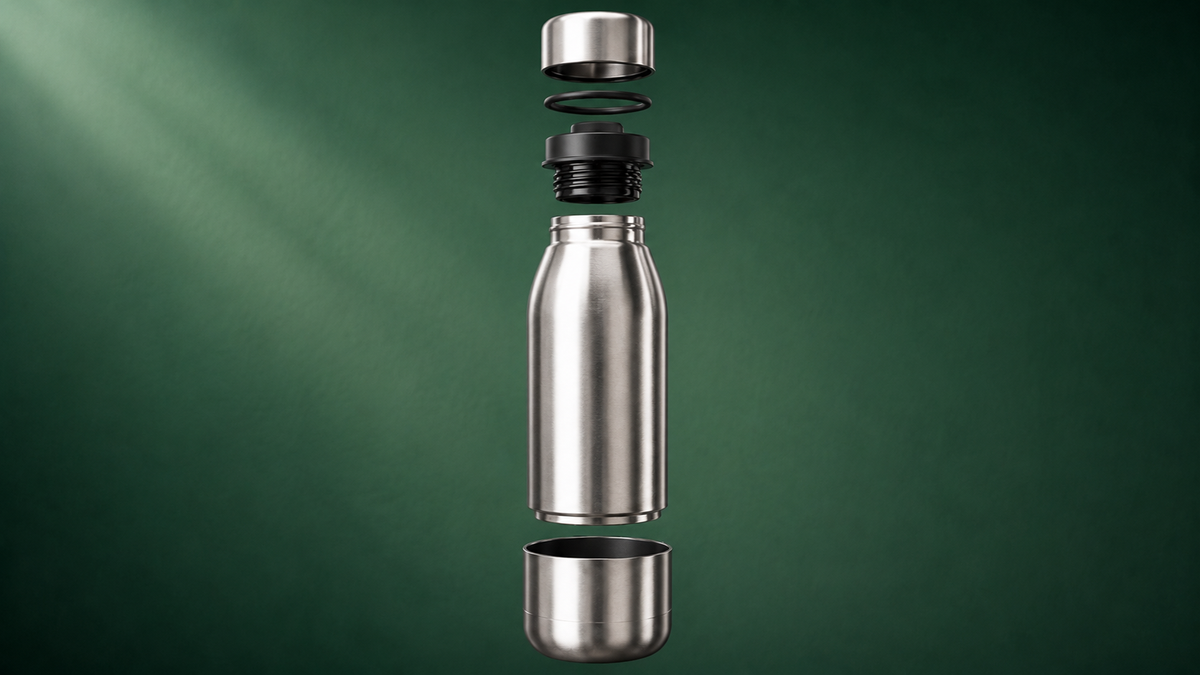

An exploded view can reveal that structure without forcing the viewer to interpret a technical drawing. The strongest versions are selective. They separate the layers that matter, keep the main product recognizable and use short labels that explain why each component is relevant. Too many floating parts can turn the visual into a parts catalog instead of a benefit explanation.
Cutaway and transparent views serve a similar purpose when spatial relationships matter. These techniques are especially useful when a product needs to explain flow, insulation, protection, pressure distribution or mechanical movement.
If a component does not help explain the buying decision, it probably does not need to be separated or labeled in the customer-facing visual.
Compatibility and Fitment Communication
Compatibility is one of the highest-risk areas for technical content because a small wording error can lead to the wrong purchase. The visual should connect three things: the product being sold, the target device or installation point, and the condition under which the fit is valid.
For an electronic part, that may mean model number, generation and connector type. For a vehicle accessory, it may mean make, model, year and mounting location. For a household replacement part, it may mean dimensions, thread type or an included adapter.
The design should make exclusions just as clear as supported fitment when they matter. A clean compatibility diagram can often communicate more reliably than a long paragraph because the relationship between part and target is visible immediately.
How-It-Works Sequences Turn Instructions Into a Story
Some benefits depend on sequence. Installation, charging, opening, folding, cleaning, pairing and adjustment are difficult to explain in one dense image because the viewer has to infer what happens first.
A short sequence solves this by giving each frame a single job. Position the product. Connect or prepare it. Activate the feature. Show the result. The sequence can be static for a listing gallery or animated later for a product video. Keeping the camera logic and visual language consistent also makes the transition from still content to motion easier.
The number of steps should reflect the real task. A simple one-touch product should not be made to look complicated by forcing it into six frames; a technical installation should not be compressed so aggressively that an essential action disappears.
Hierarchy, Icons and Callouts
Technical graphics are often damaged by over-labeling. If every detail receives an icon, arrow, badge and headline, the shopper has to decode the layout before understanding the product.
A clearer structure is usually: one primary question, one central visual, one or two proof elements and limited supporting detail. Icons can be useful for familiar concepts such as water resistance, charging, included accessories or material type, but they should summarize information rather than replace it. Callout lines should terminate precisely and avoid crossing the product unnecessarily.
Claims and Technical Accuracy Need a Source
Design can simplify approved information; it should not upgrade it. If the source says water resistant, the visual should not imply full submersion. If a dimension is approximate, the graphic should not present it as engineering precision. If compatibility has exclusions, those exclusions should not be removed to make the layout cleaner.
A practical workflow is to attach every technical visual to an approved source: manual, engineering drawing, supplier specification, validated sample measurement or confirmed client statement. The design review then checks both the visual logic and the factual basis.
Practical Examples
Replacement charging port
A compatibility graphic shows the exact phone model, connector position and installation location. A second frame shows what is included. The content prioritizes fitment before lifestyle because buying the wrong part is the primary risk.
Layered seat cushion
An exploded visual separates cover, comfort layer and support structure. A dimensions frame answers seat-fit questions. A use-case image can then show scale on a chair without repeating the construction explanation.
Cordless household device
A four-step sequence shows placement, activation, operating state and result. A separate specification frame handles charging and dimensions so the how-it-works story stays simple.
Key Takeaways
- Technical visuals should begin with a customer question, not with the full specification list.
- Dimensions are more useful when they are tied to fit, placement or comparison.
- Exploded views should reveal only the layers or parts needed to explain a benefit or function.
- Compatibility graphics must show the product, the target fit and the conditions that make the fit valid.
- How-it-works content becomes clearer when one action is assigned to each frame.
- Icons and callouts support hierarchy; too many can create another layer of decoding.
- Every technical claim, dimension and compatibility statement should trace back to an approved source.
Conclusion: Make the Product Easier to Evaluate
Strong technical design does not make a product look more complicated. It removes the effort required to understand it. The designer selects the right diagram, crop, sequence or measurement for each question and organizes the information in a way that can be scanned quickly.
When the factual source and visual logic are both controlled, dimensions, exploded views, compatibility maps and how-it-works graphics become more than decoration. They become decision tools that help the customer understand what the product is, whether it fits and how it will be used.
